- SDT-XR45
Intraoral Sensor HDR-500

SDT-XR45
Operation System:win7/win10



SDT-XR45 Intraoral Sensor HDR-500

Product Detail

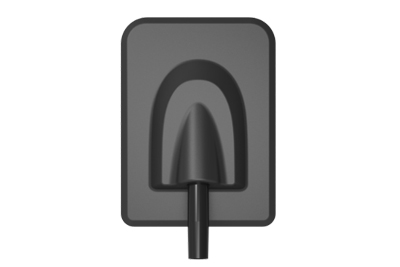

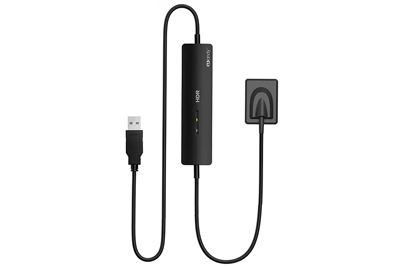

Handy Intraoral sensor HDR-500/600

Further EscalatedPerformance

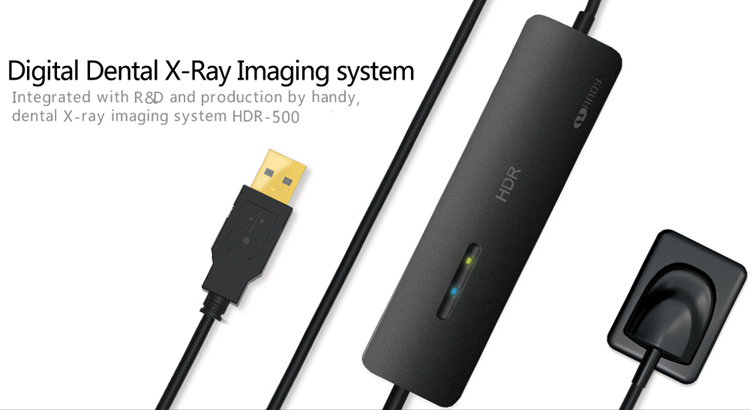

Digital DentalX-Ray imaging system

Escalation based on first genertation of HDR 100/200 sensors,

HDR500/600 have more fashionable and lighter appearance .

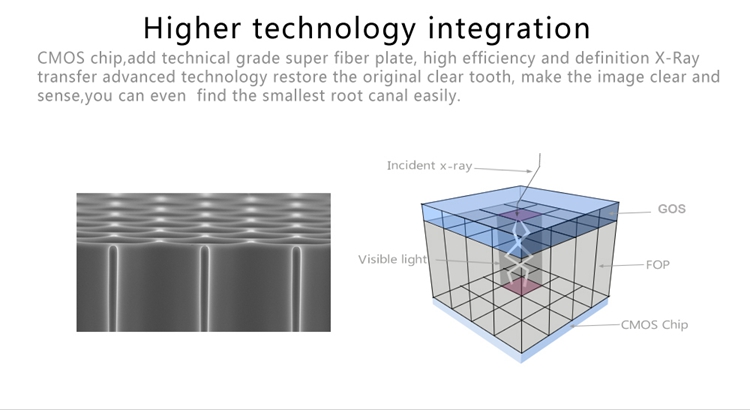

Moreover,Csl scintillator could be an option as per customer needs which has broader spectral dynamic range,

higher X-ray conversion efficiency and better details showing ability.

XR45 Intraoral Sensor HDR-500

XR45 Intraoral Sensor HDR-500

XR45 Intraoral Sensor HDR-500

XR45 Intraoral Sensor HDR-500

XR45 Intraoral Sensor HDR-500

XR45 Intraoral Sensor HDR-500

XR45 Intraoral Sensor HDR-500

XR45 Intraoral Sensor HDR-500

XR45 Intraoral Sensor HDR-500

XR45 Intraoral Sensor HDR-500

XR45 Intraoral Sensor HDR-500

XR45 Intraoral Sensor HDR-500

XR45 Intraoral Sensor HDR-500

XR45 Intraoral Sensor HDR-500

XR45 Intraoral Sensor HDR-500

XR45 Intraoral Sensor HDR-500

XR45 Intraoral Sensor HDR-500

Specification HDR-500 HDR-600
Sensor

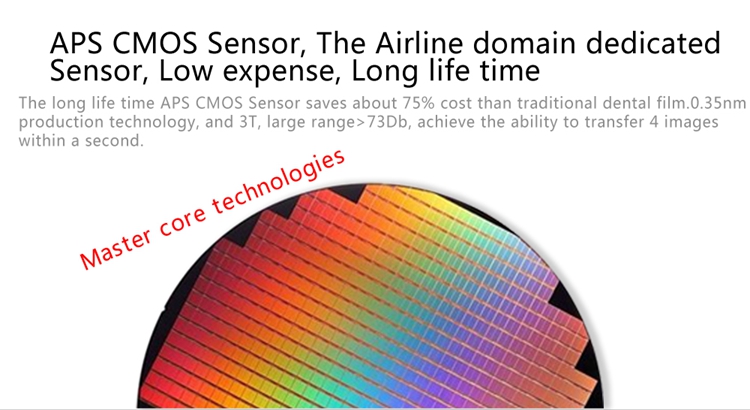

Chip Type CMOS APS
Fiber Optical Plate Yes
Scintillator GOS/CsI
Dimension 27.5 x 38.5mm 32.3 x 44.3mm

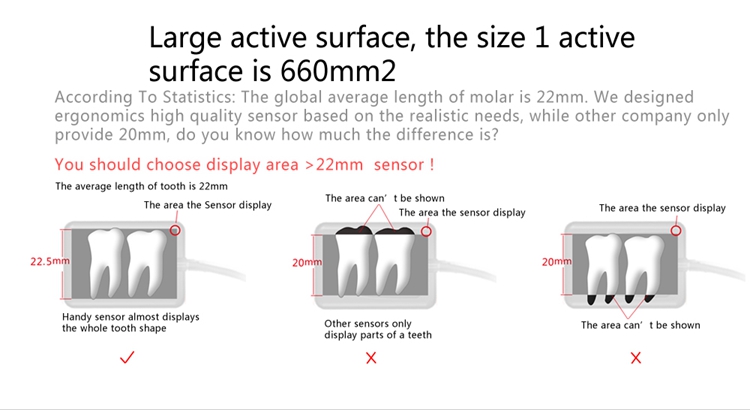

Active Area 22.5 x 30mm 27 x 36mm
675mm² 972mm²
Pixel Size 18.5μm
Active Pixels 1.9M(1600*1200) 2.7M(1920*1440)

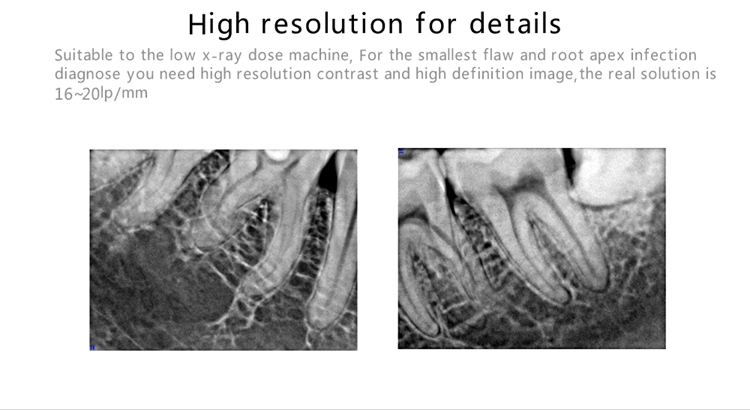

Resolution 理论值:27lp/mm
实际值:12-14lp/mm (GOS) 16-20lp/mm(CsI
Operation System Windows2000/xp/win7/win8/win8.1/win10 (32bit&64bit)

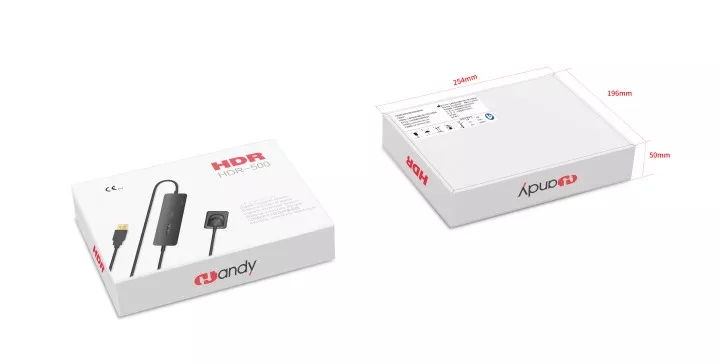

Size /Weight:

25.4CM*19.6CM*5CM/0.7KG
