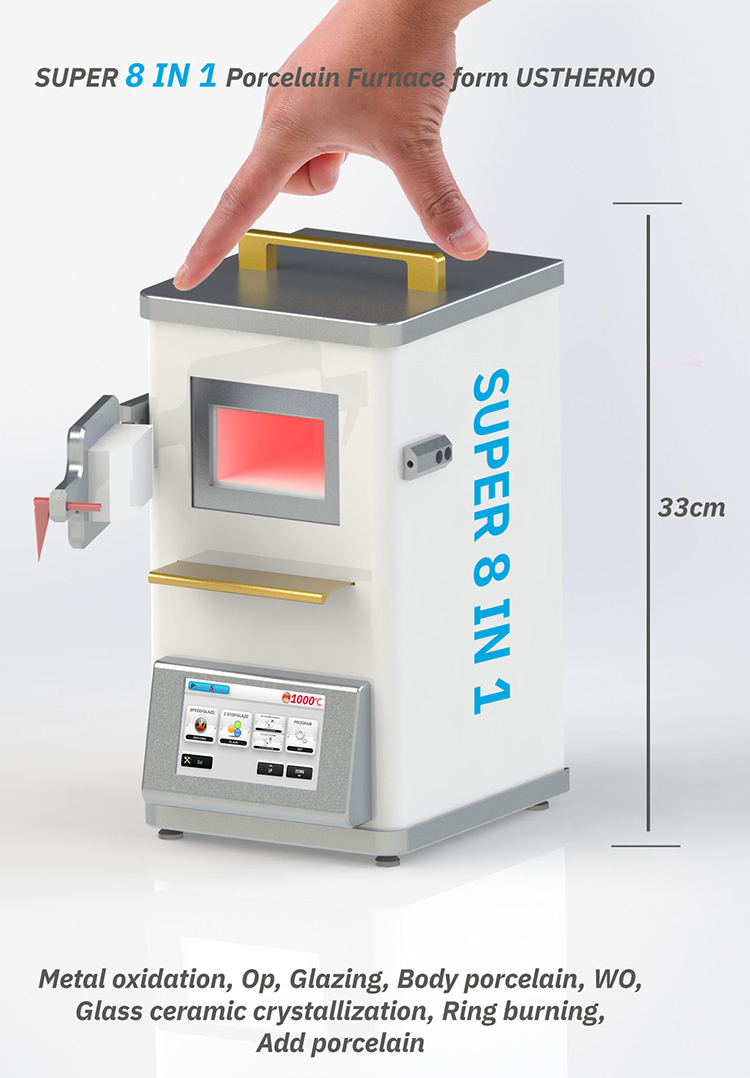

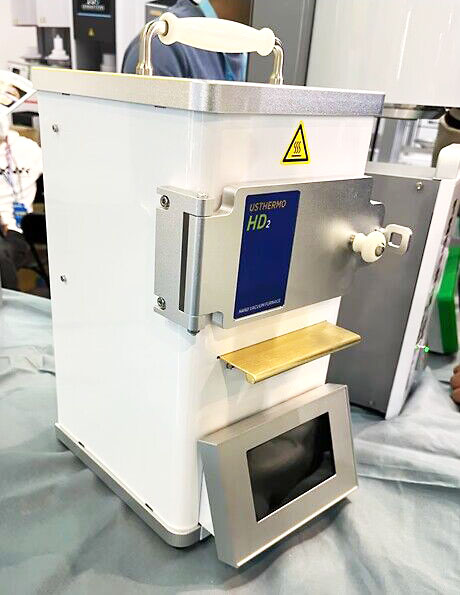

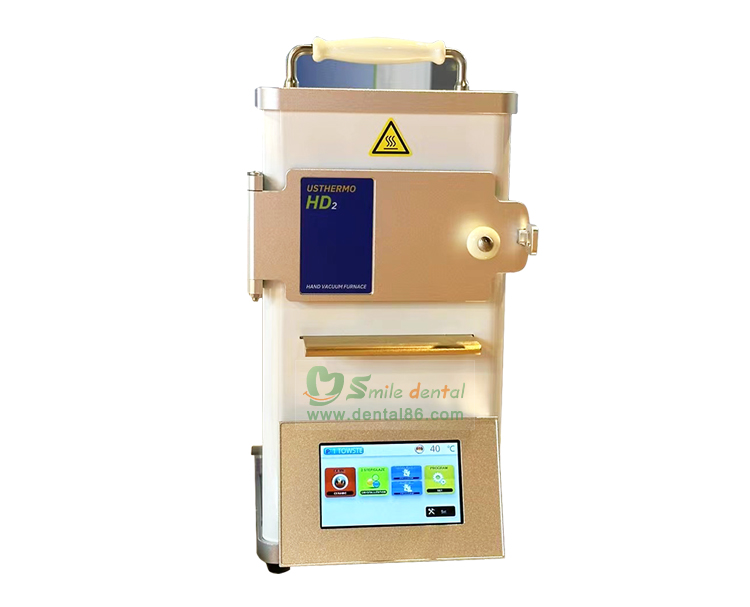

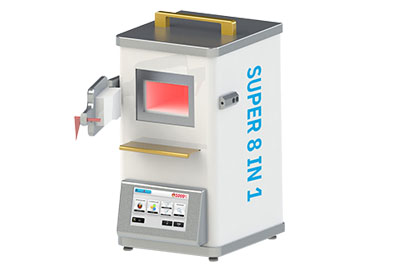

SP8 Porcelain Furnace

It can realize the lunctions of glass-ceramic crystallzation, glazing. porcelain baking.porcelain mending, dyeing; ring burning and so on. Small and compact. occupying a small space, it is very easy to place and store. It is especially suitable for dental hospitals,clinics and denture studios that are clean, tidy and have space requirements: It can be used with chair-side CNC, and almost all tasks can be completed in a very small space. In addition,it is extremely convenient to carry. In extreme cases,it can be started by using 12V battery power supply with the driver.It is not afraid of power failure and other interference, and does not affect the operation of temporary porcelain mending,dyeing and so on.

Typical application:

Metal oxidation, Op, Glazing,
Body porcelain, WO, Glass ceramic crystallzation, Ring burning.Add porcelain

Performance index:

Volume (length, width and height): 18* 20*35cm

Furnace size: 75*45*90mm

Maximum temperature: 1100℃

Power: 850W

Maximum heating rate: 100℃ / min

Maximum vacuum:-92kpa

Furnace material:full body high thermal conductivity mullite silicon carbide

Built in programs:99

Hyperbola support: support hyperbola

Thermocouple: precious metal platinum rhodium thermocouple

*Built in high vacuum pump industrial vacuum pump True color capacitive touch screen

*Full body high thermal conductivity silicon carbide reflection furnace
*Minimal storage volume

*Can be additionally matched with high temperature resistant storage bag
*Battery power supply can be used after additianal matching with inverter power supply.
