Feature:

1.Preset speed mode(high-mid-low speed)>

2.Agentle,pulsed stimulus begins to increase at a rate specifically designed for patient comfort.

3.If the patient indicates perception,simly release the button,the stimulus stops immediately,but the numbers remian frozen on the screen for about 3 minutes.

4.Specifically designed for patient confort.

5.Convenient to operate.

6.Maximum stimulus ---80.between 0-40,the patient feels ache and anesthesia,alive teeth nerve.

7.Between 40-80,with above-mentioned reaction,part of teeth nerve dead;80,no above-mentioned reaction,dead teeth nerve.

8.The device turns itself off in three minutes after operation(No wasted batteries).

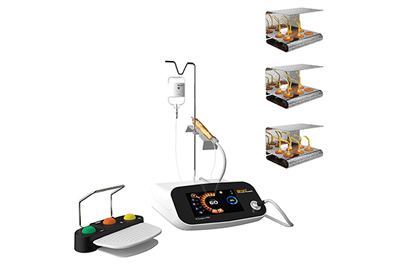

PBS01 Piezo Bone Surgery

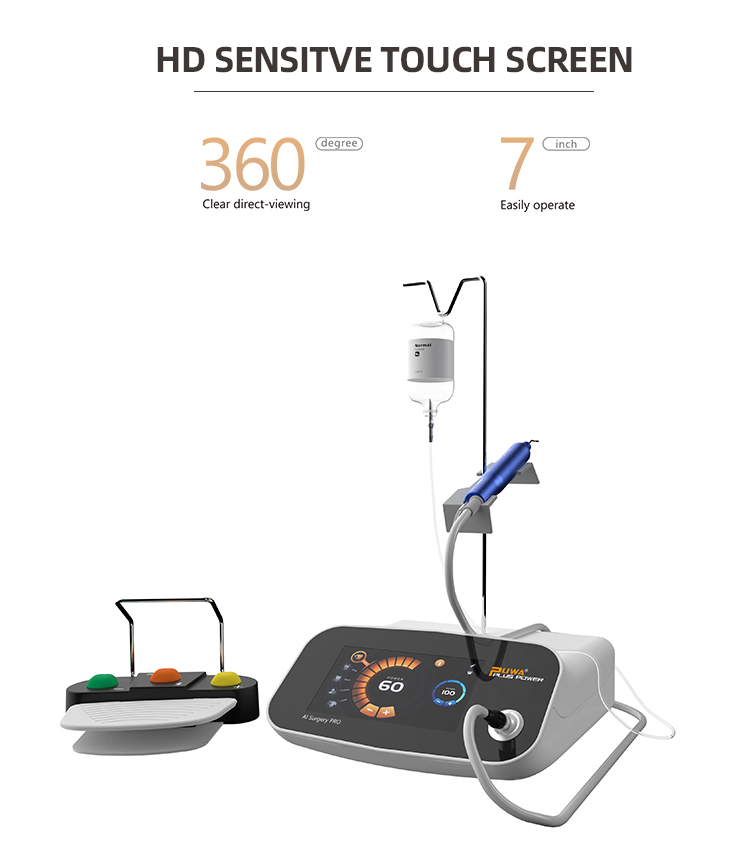

HD Sensitive Touch Screen
7-inch screen for easy operation, 360° clear direct-viewing.

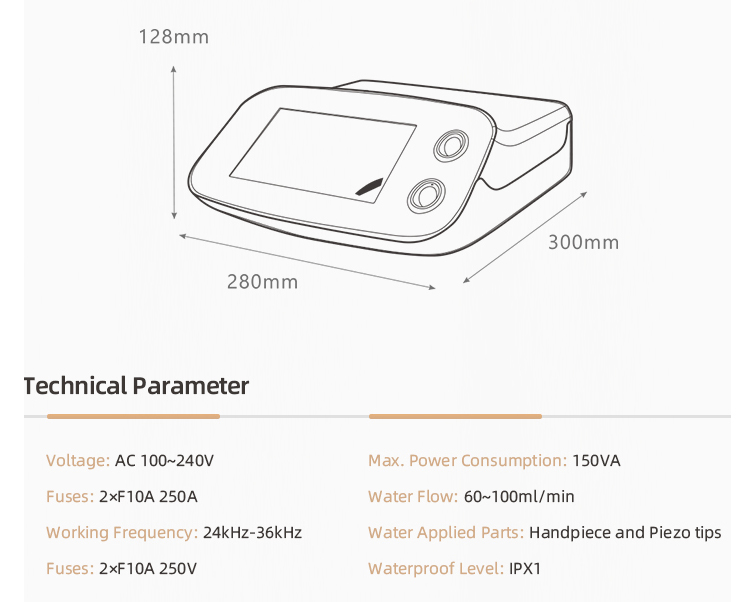

Technical Parameter
Voltage: AC 100~240V
Max. Power Consumption: 150VA
Fuses: 2×F10A 250V
Working Frequency: 24kHz-36kHz
Water Flow: 60~100ml/min
Water Applied Parts: Handpiece and Piezo tips
Waterproof Level: IPX1
Size: 300mm × 280mm ×128mm

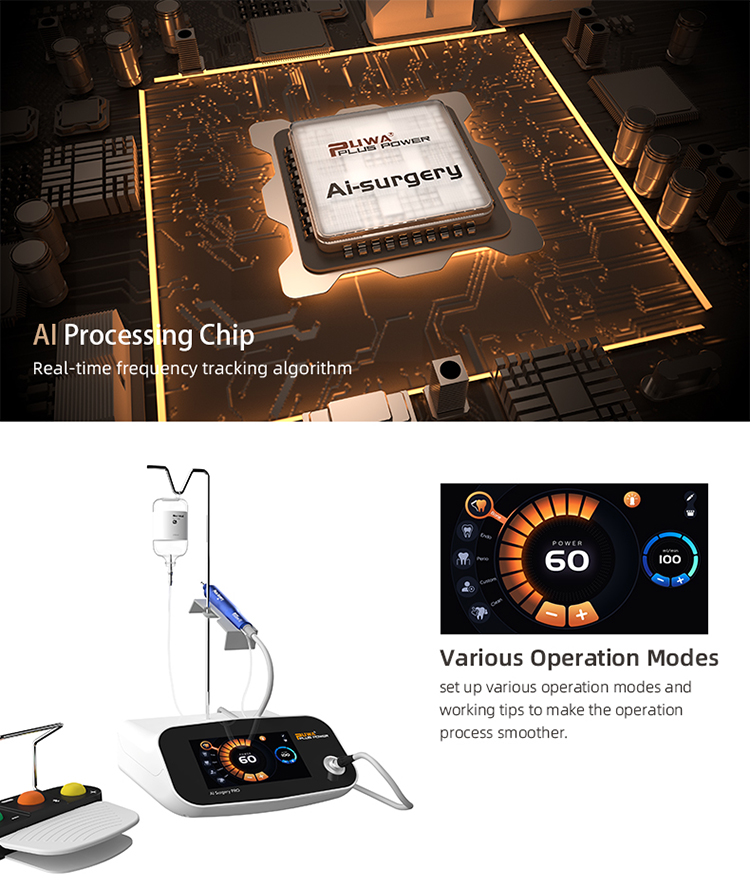

AI Processing Chip
Real-time frequency tracking algorithm.
Various Operation Modes
Set up various operation modes and working tips to make the operation process smoother.

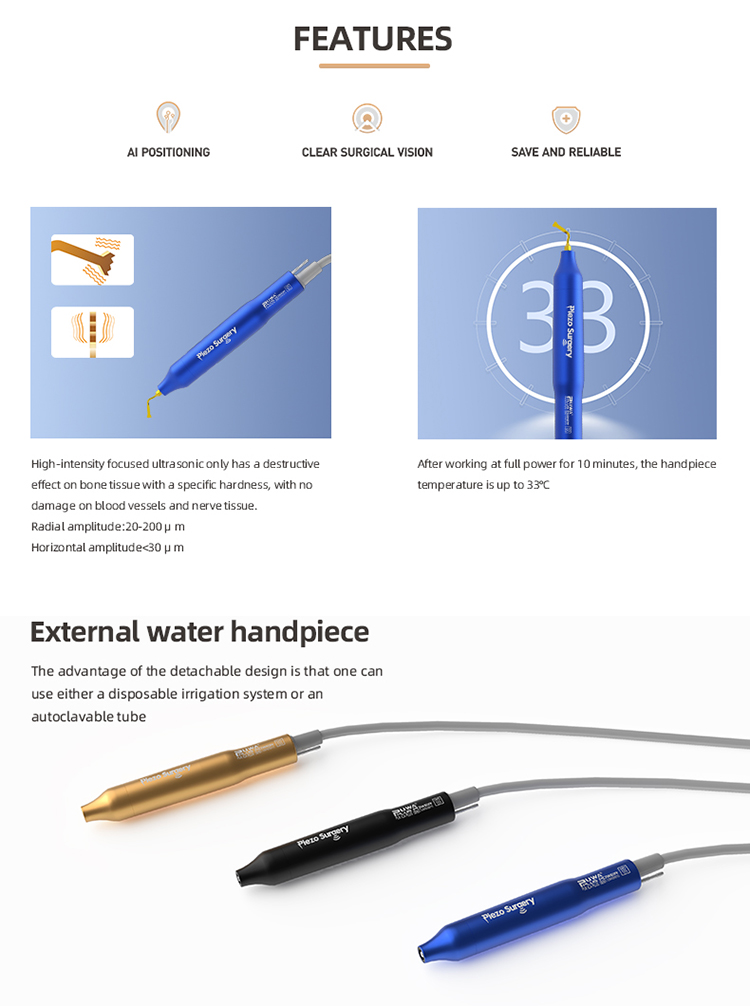

FEATURES
AI Positioning | Clear Surgical Vision | Safe and Reliable
High-intensity focused ultrasonic only has a destructive effect on bone tissue with a specific hardness, with no damage on blood vessels and nerve tissue.
Radial amplitude:20-200μm
Horizontal amplitude:≤30μm
After working at full power for 10 minutes, the handpiece temperature is up to 33℃.
External water handpiece
The advantage of the detachable design is that one can use either a disposable irrigation system or an autoclavable tube.

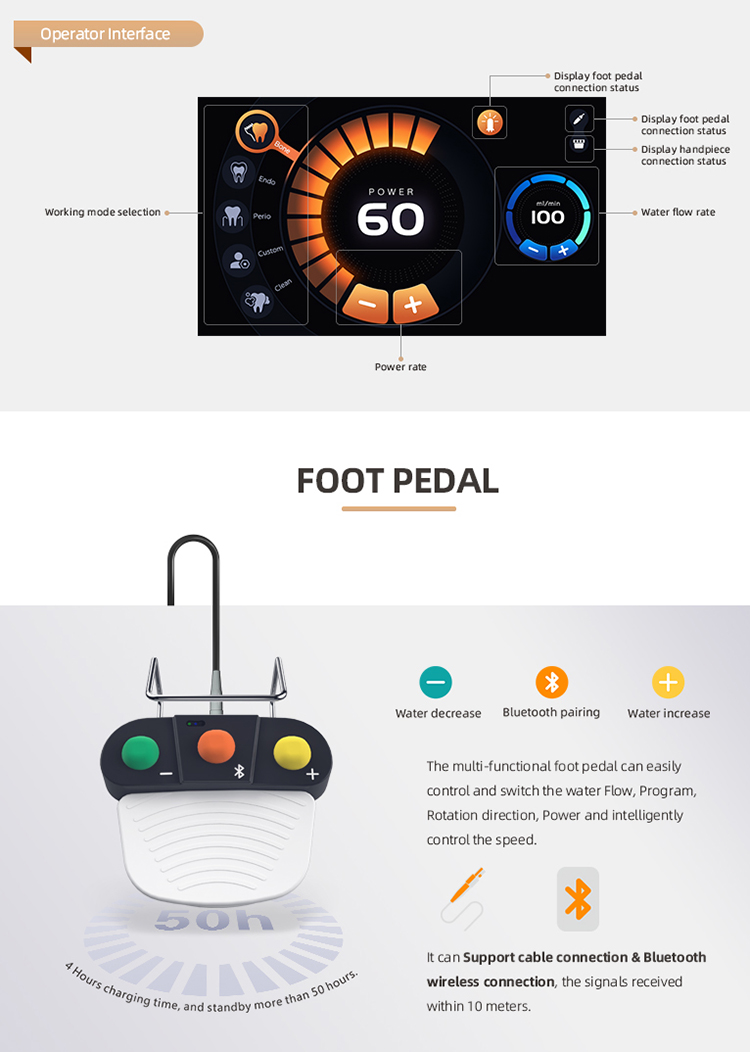

Operator Interface
Display working mode selection, power rate, water flow rate and foot pedal connection status.
FOOT PEDAL
The multi-functional foot pedal can easily control and switch the water flow, program, rotation direction, power intelligently control the speed.
It can support cable connection & Bluetooth wireless connection, the signals received within 10 meters.
4 hours charging time, standby more than 50 hours.

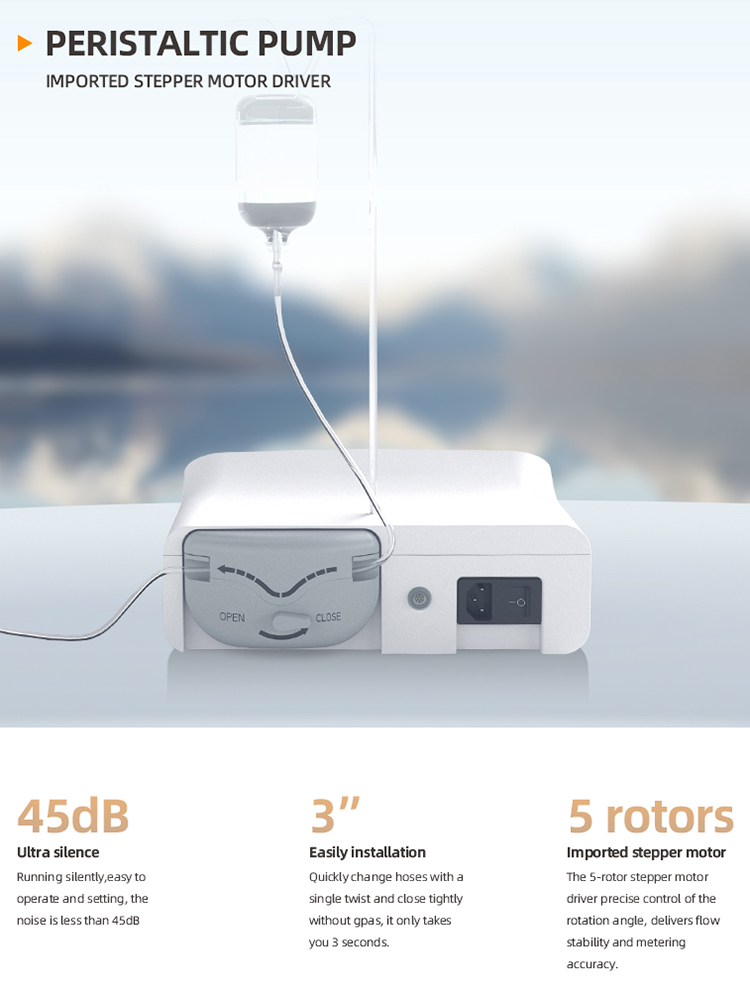

PERISTALTIC PUMP
Imported stepper motor driver
Ultra silence
Running silently,easy to operate and setting, the noise is less than 45dB
Easily installation
Quickly change hoses with a single twist and close tightly without gpas,it only takes you 3 seconds.
Imported stepper motor
The 5-rotor stepper motor driver precise control of the rotation angle, delivers flow stability and metering accuracy.

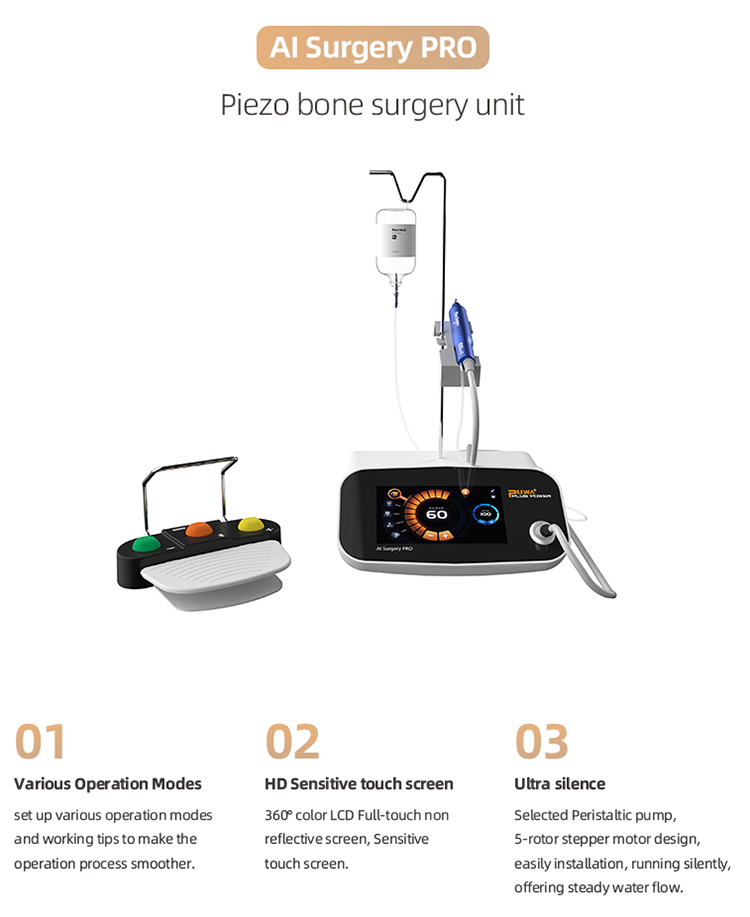

AI Surgery PRO
Piezo bone surgery unit
01.Various Operation Modes
set up various operation modes and working tips to make the operation process smoother.

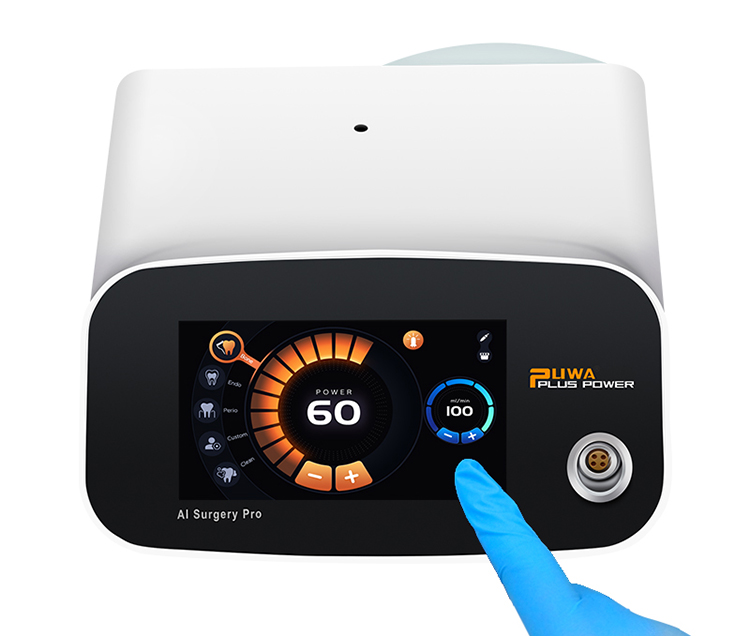

02.HD Sensitive touch screen
360 color LCD Full-touch non reflective screen, Sensitive touch screen.
03.Ultra silence
Selected Peristaltic pump,5-rotor stepper motor design,easily installation,running silently,offering steady water flow.
