XR45A Intraoral Sensor HDR-500a

Digital Intraoral Sensor
Technical Data
Sensor: APS CMOS sensor
External dimension (mm): 40×26 (HDR500A)
Sensor Active Area: 30×22.5 (HDR500A)
Sensor Thickness: 6 mm
Dynamic Range: 0~4,096
Power: 5V±0.5V
Image Transfer: USB 2.0
Cable Length: ≥ 3 m

Operating Conditions
Environment Temperature: +10℃~+40℃
Environment relative humidity: ≤95%
Air pressure: 860hPa~1060hPa
Transport and Storage conditions:
Environment Temperature: -25℃~+60℃
Environment relative humidity: 10%~93%

Feature
1. Multi-languages with 10 types.
2. Operation system: desk top & laptop (Win 7, Win 8, Win 10).
3. Twain driver Compact.
4. Power: USB 2.0 interface.
5. Excellent quality: our sensor material imported from Germany and Japan, best quality standards.
6. New APS CMOS sensor with long life time (400,000 times).
7. Warranty for one year.

Packing List
1. Manual 1pcs
2. CD 1pcs

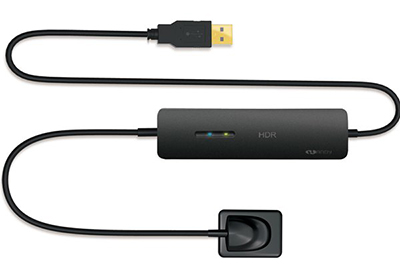

3. X-Ray Sensor and Control Box 1pcs
4. Holder 2pcs
5. Sleeves 1 bag

XR45B Intraoral Sensor HDR-500B

External dimension (mm) :27.5×39
Sensor Active Area(mm) : 22.5×30
Pixel Size:18.5μm
Operation System:win7/win10

Faster lmaging

Compared to the traditional film, the HDR sensor imaging speed is much faster.

Higher Definition

Two sensor sizes with 1.92 million and 2.76 million pixel resolutions respectively, even the subtle apical bifurcation can be easily found.

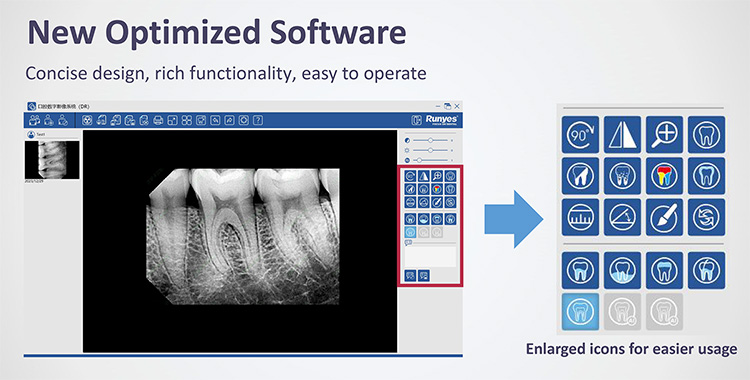

Powerful Imaging Management Software

Handydentist imaging software with powerful image processing algorithms and logical management structure helps to make dentists’daily practices easier.

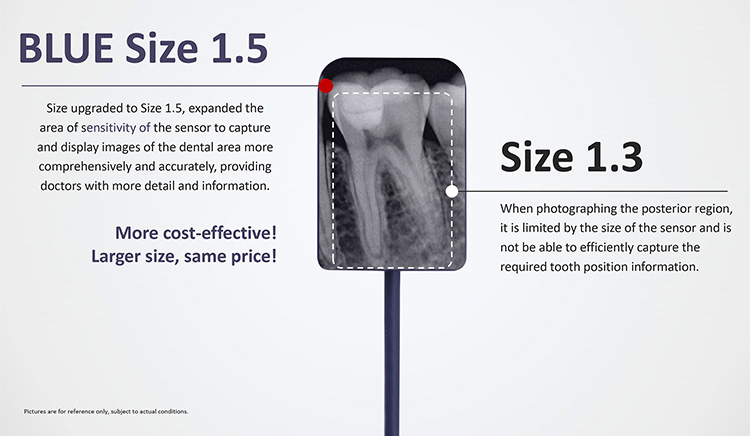

Bigger Active Area

HDR size 1.3 is with a bigger active area as 22.5x30mm,while most size 1 sensors in the market are with 20x30mm.
Bigger active area is able to cover more data, especially easier to view the posterior area, since the average molar length is 22mm.

Better Compatibility

HDR series can be compatible withvarious brands of X-ray machines in the globe market.
